Citizen LinkServer

Features Citizen LinkServer

Citizen LinkServer helps you to set up Citizen label printers via USB.[Supported models]Designated printer models, firmware versions are required (see below).- CL-E300 (Firmware Version: EQxx0300 or later)- CL-E300EX- CL-E321 (Firmware Version: EQxx0300 or later)- CL-E321EX- CL-E303 (Firmware Version: ERxx0300 or later)- CL-E303EX- CL-E331 (Firmware Version: ERxx0300 or later)- CL-E331EX- CL-S521II- CL-S531II- CL-S621II- CL-S631II- CL-S700II- CL-S703II- CL-S6621- CL-S700III- CL-S703III[Supported interface type]- USBThe Android device must work as USB host to control the printer device.

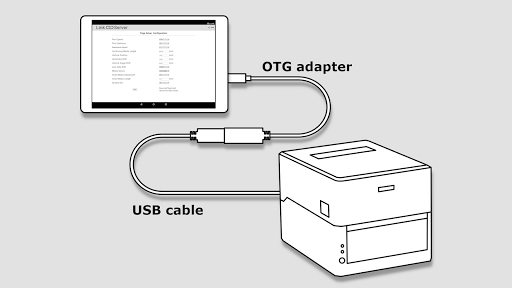

For example, you will need a so-called USB OTG (On-The-Go) adapter, which has a micro USB or Type-C male connector on the Android side (depending on your Android device) and a Type-A female connector on the other side.

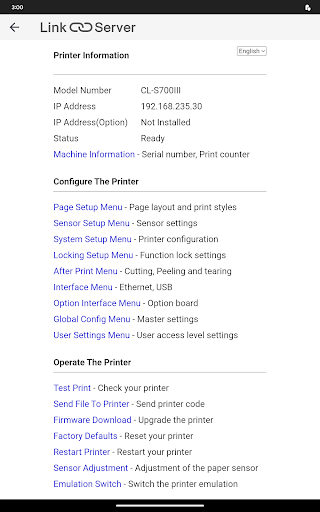

Then you can connect a regular USB cable for printer which has a Type-A male and Type-B male to connect to a printer.[Example features]- Checking printer information such as serial number or counters.- Setting up printing controls such as printing speed, darkness or position.- Setting up systems such as sensor levels or buzzer.- Setting up media handlings such as cutter action.- Setting up communication interface.- Switching configuration presets.- Managing access control.- Printing test labels.- Sending raw data to the printer.- Updating firmware.- Resetting the printer.- Restarting the printer.- Switching emulations.
